Deskripsi

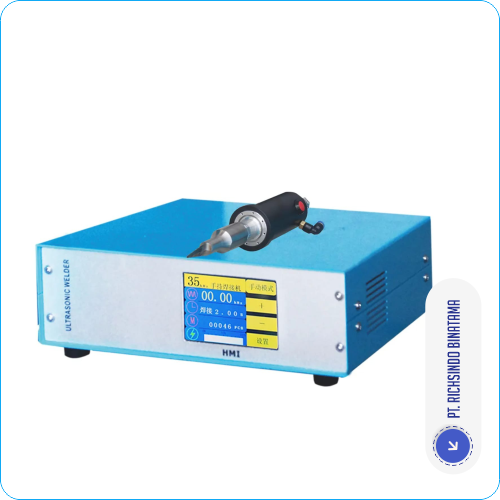

Power: 400W Frequency: 28/35kHz optional
Application fields: printing consumables, toys, daily necessities, communications, electronics, jewelry, clocks, railways, aviation and other industries, especially for automobile door panels
Ultrasonic generator type: hand-held welding generator
Welding gun type: straight handle, gun type optional
Product features: It is a sharp tool suitable for single point welding, screw embedding, riveting, cutting cloth, etc.
Products details
Features:
1、Hand-held design, easy to weld, small size does not take up space
2、Microcomputer program control, automatic frequency tracking, easy to operate
3、Set up a protection circuit, safe to use and stable to work
4、Slight noise, environmental protection, no pollution
5、Fast welding, each welding time is 0-9.99 seconds
6、High welding quality and precise welding effect
| 机型 Model | ⼿握式焊接机（EDG） | |
| 频率 Frequency | 28kHz | 35kHz |
| 功率 Power | 400W | |
| 输⼊电压 Input Voltage | AC190-AC240V 50Hz/60Hz | |
| 输出时间 Oscillation Time | 0-9.99s | |
| 焊接⾯积 Welding Capability | Φ10mm | |
| 电箱尺⼨ Generator Size(mm) | 250×210×100 | |
| 焊枪尺⼨/直柄 Handle Size(mm) | 145×50(Φ) | |
| 电箱净重 Weight | 2kg | |
| 频率显⽰Frequency Display | 可实时显⽰焊头因温度不同变化产⽣的频率变化 Real-time display of the frequency change of the horn due to different changes in temperature |
|
| 显⽰屏 Display | LCD全彩触摸屏LCD full color touch screen | |
| 最⼤输出功率Maximum Output | ⽐额定输出频率⼤10%10% Higher than rated output frequency | |
| 负载显⽰ Load Display | 可即时监控⼯作时电流负载值Real-time monitoring of current load value during operation | |
| 振幅可调Adjustable Amplitude | 可调整，10%-100%（智能款）Adjustable amplitude from 10% to 100%(Digital type) | |
| ⼯作环境温度Operating Temperature | 作业时-20℃⾄+45℃Working environment temperature-20℃ to +45℃ during operation | |
| ⾮标模式Non-standard Mode | 外部控制 External control | |
| 多重保护Multiple Protection | 电流过载、⾳波过载、保险丝等多重保护 Multiple protections such as current overload, overload, fuse,etc 数字化管控，焊接数据可导出，提升焊接品质（LC系列） Digital control,welding data can be exported to improve welding quality(LC series) |
|
